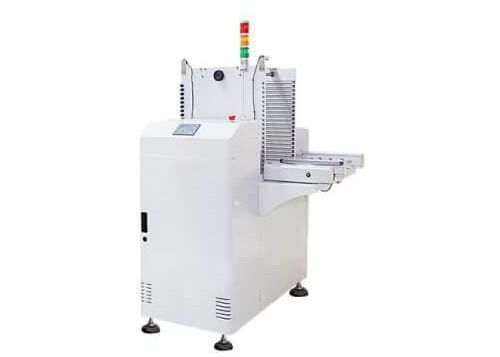

SMT Assembly line PCB loader PCB Buffer Stocker
The Buffer Loader can be used as a mid-line loader or unloader, as a LIFO and FIFO buffer between SMD assembly, Connect with SMT and AI productions line. Straight-through may be selected so that PCB is conveyed by it, or Automatic may be selected so that this machine is used as a PCB buffer loader. (Automatic or Straight-through may be selected for this machine. When Automatic is selected and if the preceding machine is turning out PCB too fast but the following machine is feeding PCB too slowly, more PCB will be stored in this machine and sent out as long as the following machine needs it; When Straight-through is selected, this machine will be used as a conveying table.)

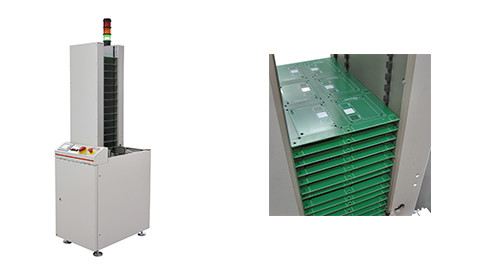

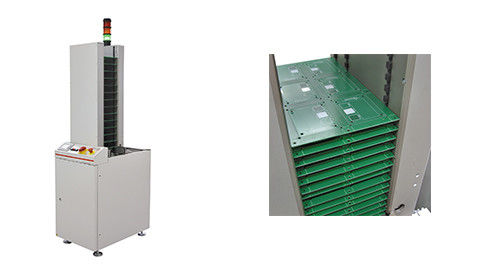

SMT Assembly line PCB loader PCB Buffer Stocker
Products description
Features
1. Servo motor, PLC Control system, HMI control panel.
2. 3 operative modes: FIFO buffer, LIFO buffer, pass through.
3. 24pcs PCBs can be stored temporarily, width adjustable.
4. Direction from left to right or right to left(optional).
5. SMEMA compliant.
Specifications
| Model | SMTfly-BU |
| Power | AC 110/220V ±10V, 50/60HZ |
| PCB Width | 50 - 400mm(other specification on request) |
| PCB Length | Max. 460mm(other specification on request) |
| Buffer capacity | Max. 24 PCBs at pitch 10mm |
| Transport Height | 900 ±20mm |
| PCB Direction | left to right (option: right to left) |
| Pitches | 10,20,30mm |
| Machine Dimension | 600 x 1000 x 1600mm |
