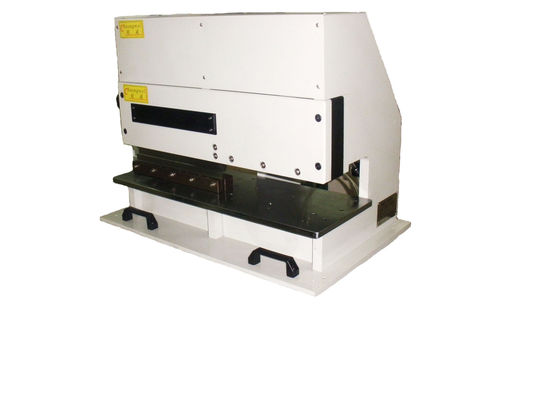

110 / 220 V PCB separator machine motorized pneumatic type CWVC-3
PCB separator machine motorized pneumatic type
1.Cutting any length
2.Easy blade adjusting
3.Protecting PCB board
4.Safety protecting hand
Specification:
|
Model |
CWVC-3 |
|
PCB Cutting Length (mm) |
unlimited |
|
Cutting Thickness (mm) |
0.3~3.5 |
|
Weight (Kg) |
185 |
|
Size (mm) |
780*500*620 |
|
working area (mm) |
330*220 |
|
Power Supply (V) |
110/220 |
|
Blade Working life for metal (Year/Cutting times) |
1~2/0.8~1.55 million |
|
Blade Working life for PCB (Year/Cutting times) |
2.5~3/2.5 million |
|
Blade Hardness (HRC) |
60~63 |
|
Blade Hardness (HB) |
540~567 |
|
Guarantee (Year) |
1 |
|
Delivery (Day) |
1 |
|
Min. Order (Set) |
1 |
|
Ability (Set) |
1000 |
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed
circuit board),LED.
2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated
to high strength cutting, and excellent toughness, able to cut metal board !!!!!!
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed
circuit board)
Feature:
1.Cut any length metal board more safety and easily.
2.Separates long boards directly, without turn direction .
3.Separates boards up to 2.0mm thick Metal Board
4.Shears boards safely with parts as close as 1 mm to the
score line, including ceramic capacitors
5.Operator foolproof! Panels cannot be inserted into the
knives except on the score line
6.Handles high components up to50mm
7.Bow waves that can occur with round knives are avoided
8.Easy adjusting of distance between knives
Our Advantage :
1.CWVC-1 Pcb depanelizer original manufacturers, price concessions
2.Promise day technical support services
3.Limit the handling of complaints, half an hour back to customers
4.Depanel Experts, the provision of professional PCB sub-programme
5.Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.
Expanding Reading:
SKH-9:
HB621 HRC63
Dedicated to manufacture the high strength cutting blades. Steel not only high strength and excellent toughness, but also good wear resistance. Comparing to the other material that's much more economical and higher practicality, so it is very wide-range using.
SKH-51 tungsten steel:
HB621 HRC63
Dedicated to manufacture turning tools, drill. It maintain high hardness at room temperature, however if up to 200 °C hardness sharp decline, above 500 °C lose metal cutting ability totally.
Titanium Ti:
HB540 HRC55
Dedicated to manufacture aviation sector, aircraft engines, rockets, missiles, supersonic aircraft structural components. Still maintain a certain strength, high toughness under high temperature. Corrosion resistance is extremely strong, and still ensure the stability of the overall performance of ultra-high temperature.
