Pneumatic Guillotine PCB assembly equipment No Limit Cutting Capactity
Aluminium PCB depanelizer mahine
board :PCB/FR4/FR2/CEM-1
Thickness:0.5-3.5mm
Blade length:330mm
pcb separater equipment for export
1.lead time:3days
2.separate length:unlimited 3.separate thickness:1.0-3.5mm
3.Blades are made of Japanese steel: durable
PCB Depaneling Router Machine Specification:
|
Model |
CWVC-3 |
|
Max PCB Length |
No limit |
|
Size |
780*500*620mm |
|
Thickness |
0.3-3.5mm |
|
Weight |
185kgs |
|
Air Pressure |
0.6-0.8Mpa |
Aluminium PCB depanelizer mahine Features :

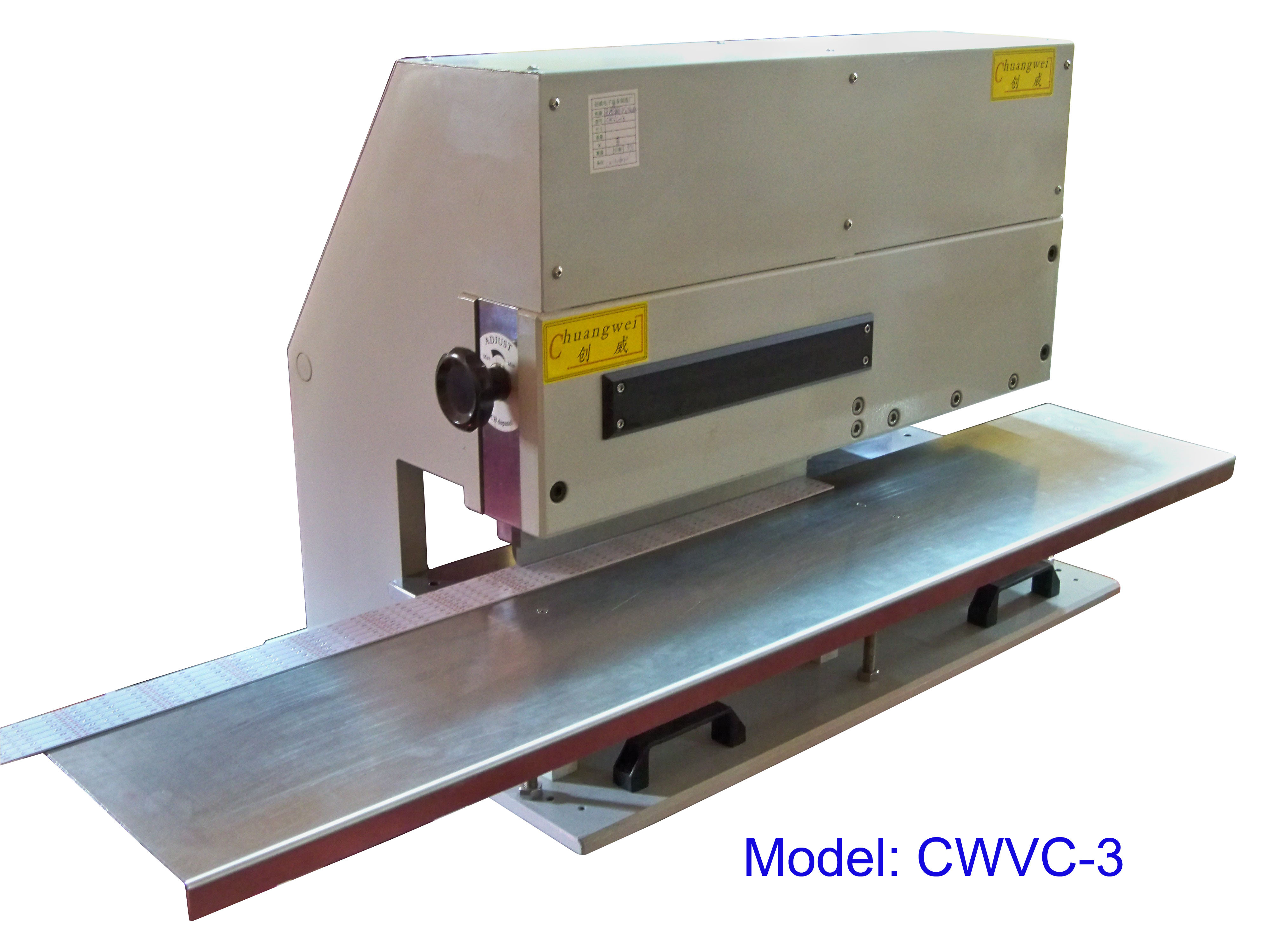

Penumatic Depanelizer CWVC-3
1.Cut any length metal board more safety and easily.
2.Separates long boards directly,without turn direction
3.Separates boards up to 2.0mm thick Metal Board
4.Shears boards safely with parts as close as 1 mm to the score line,including ceramic capacitors
5.Operator foolproof! Panels cannot be inserted into the knives except on the score line
6.Handles high components up to50mm
7.Bow waves that can occur with round knives are avoided
8.Easy adjusting of distance between knives
The longest Minimize: unlimited
Replacement of upper blade:
1. Loosen 5 screws of upper blade
2.Remove the meatal piece and blade, then replace a new one
Replacement of lower blade:
1.Loosen 5 screws
2.Remove metal piece and replace a new blade
