Floor Style CNC PCB Router PCB Separator PCB Depaneling Routing Machine

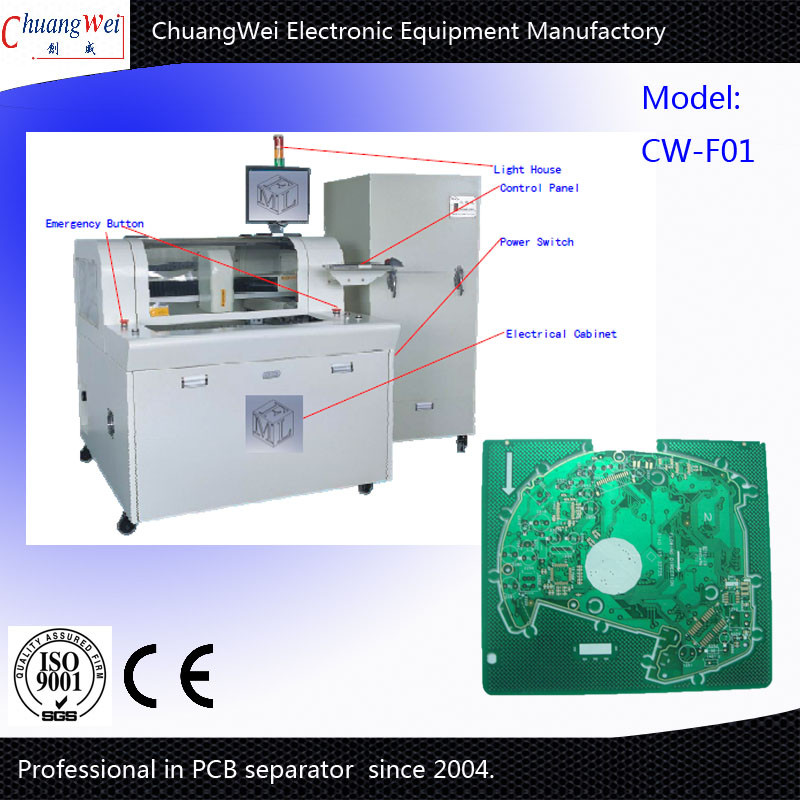

CW-F01 profile:
CW-F01 automatic visual cutting machine is the latest designed high-tech product of a new generation, with (Machine Vision)automatic visual identification and correction function, applied by high-accuracy Panasonic servo drive system to realize quick and precise positioning, rendering accuracy at 0.001mm maximum to ensure the high quality of the cutting and high productivity.
Customers feedback
Specification:
Software:
|
Control system |
Windows XP Professional (Service3,v.3244) |
|
Operation GUI |
Chinese Windows XP |
|
Program edit |
Inline |
|
Vision system |
CCD AOTU offset |
|
Control system |
F 1.0.2 version |

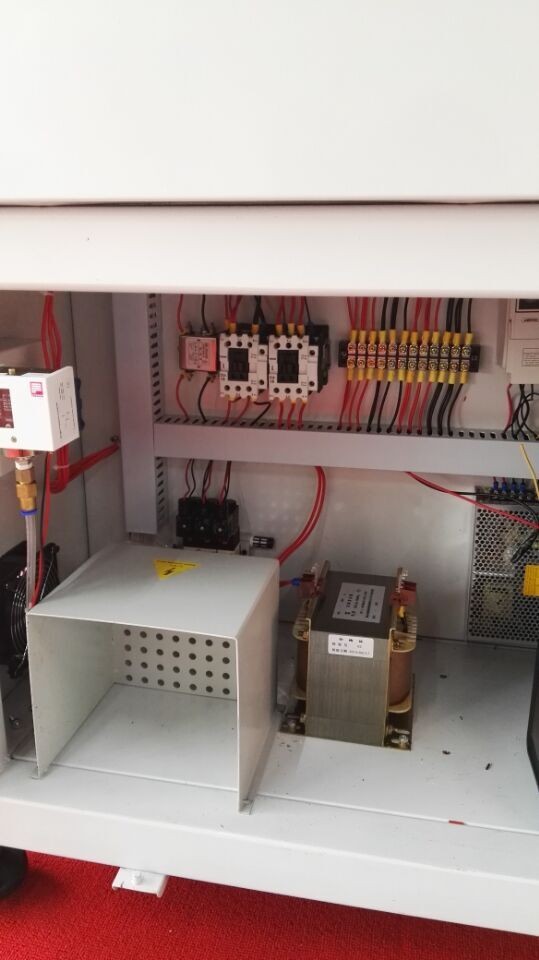

Hardware:
SPINDLE Morning Star spindle and inverter
|
CCD |
Sony 520 line industrial cameras |
|
LENS |
Computar EX2C |
|
Screw |
TBI Precision ground ball screw imports |
|
Guide |
HIWIN widening Imported linear guide rail |
|
MOTOR |
JiaBao LCF Series |
|
I/O CONTRONL CARD |
HFC PCI-9074 |
|
DRIVER CONTRONL CARD |
HFC PCI-9074 |
|
I/O CARD |
PCI-9074-64pcs/-38pcs |
|
Static cleanup |
STATIC-ST401A Series |
|
Computer |
RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G |
|
Machine interface |
AOC LCD17",Logitech mouse |
Performance Parameters:
|
Overall |
|
|
Dimensions(W*D*H) |
1220mm*1450mm*1420mm |
|
Weight |
550KG |
|
Height offset |
60~110mm |
|
Manipulator |
|
|
Motor type |
JiaBao series |
|
Positioning repeatability |
0.001mm |
|
Axis working area(max) |
680mm*360mm*50mm |
|
Work station |
|
|
Work station |
standard,specialization |
|
PCB loading/unloading |
manual |
|
PCB size (max) |
322mm*322mm |
|
PCB thick (max) |
5mm |
|

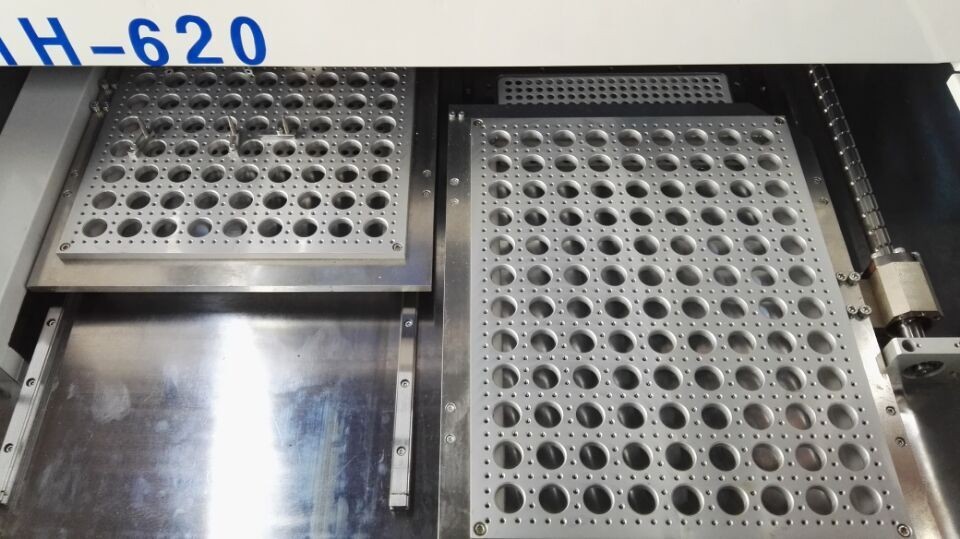

Fixturing |
|
|
Rigidity fixturing |
standard |
|
Fixturing fixation |
machinery |
|
Spindle Motor |
|
|
Power |
400W |
|
Spindle |
50000rpm/min |
|
Protect |
self/wind cooling |
|
Change cutter |
Specialization |
|
Routing capability |
|
|
Cutting speed(max.) |
100mm/s |
|
Driving speed(max.) |
3000mm/s |
|
Precision of cutting |
0.01mm |
|
Vacuum System |
|
|
Vacuum power |
2.2KW AC 380V |
|
Vacuum plumb |
|
|
Utilities |
|
|
Power |
2.2KW AC380V |
|
Air supply |
2~5KG/cm2 |
Why choose us
1. Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
3..Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
4. Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend
CE approval
