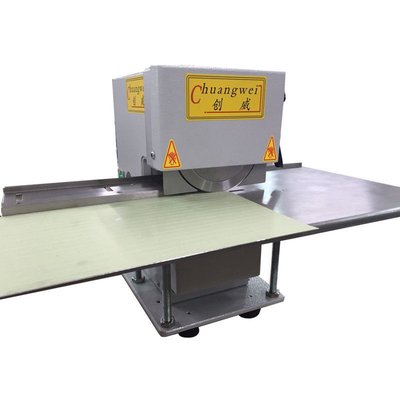

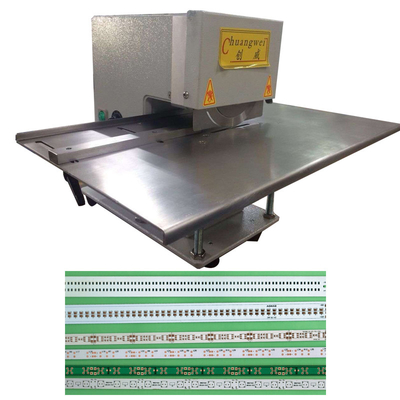

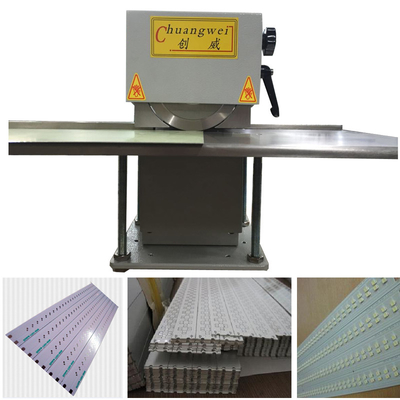

V Cut PCB Separation Machine Pre Scoring PCB Depaneling For T8 T5 LED Tube
Brand new V Cut Groove PCB Separating Separator Cutting Machine
New V cut grove PCB separator cutting machine USG
Brand new V Cut Groove PCB Separating Separator Cutting Machine
V Cut Groove PCB Separating Separator Cutting Machine cutter
V Cut Groove PCB Separating Separator Cutting Machine US
Brand New V Cut Groove PCB Cutting Machine Separating Separator ST-601C UK
Specification:
Application PCB :V-CUT and S.9M.T.PCB(substrate)
Motor speed :Max 1380 / min ( adjustable )
Cutting speed : Max 0-24 meter / min (adjustable)
Max PCB cutting width :110mm
Maximum board component height : 40mm
Max V-CUT Thickness :0.6-2.0mm
Voltage :220V / 110V ,50HZ
Weight : 45kg
Size : 350 * 300 * 400 mm
Power : 40W
Introduction:
1 , In typical assemble line , high percentage of defect PCB is often created by incorrect separation of panelized PCB after reflow and this process depending on the labor skill and concentration .
2 , Fine component soldering or near edge copper trace, board mechanical structure often break or damage by the hand break off procedure of v-grove board separation . Root cause can also be marginal v-groove routing or high strength PCB material .
3 , The V-CUT machine is widely using in the industry to provide reliable way to separate small panelized v grove board , its labor independent and easy to operate . It eliminated the process error near to none and improve yield .
Machine Features:
1 ,Fine blade height can be adjusted to suit the PCB .
2 ,Separated the board via V blade instead of hand bending ,
3 , Industrial grade motor make sure the reliability of round the clock operation .
4 , Speed control can be adjusted
5 , Board guard height is adjustable .
6 , All steel construction . Accurately and Rigid
7 , one year warranty
